neq6

Monture NEQ6

tout est sur le site de Pierro Astro

révision          optimisation

wat120

Watec 120N+

caméra vidéo analogique

remplacée aujourd’hui par la Watec 910HX/RC

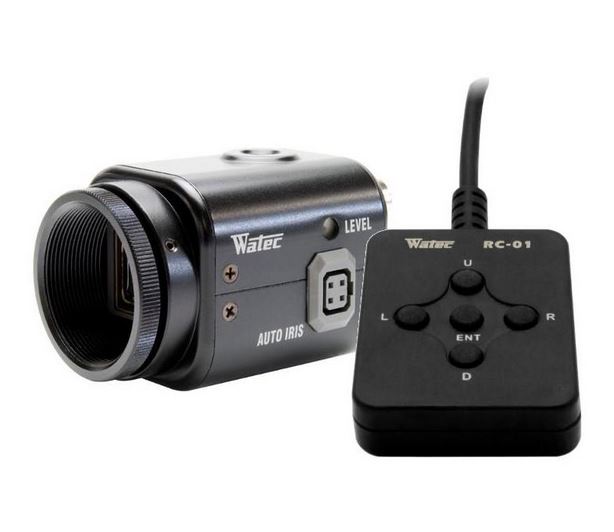

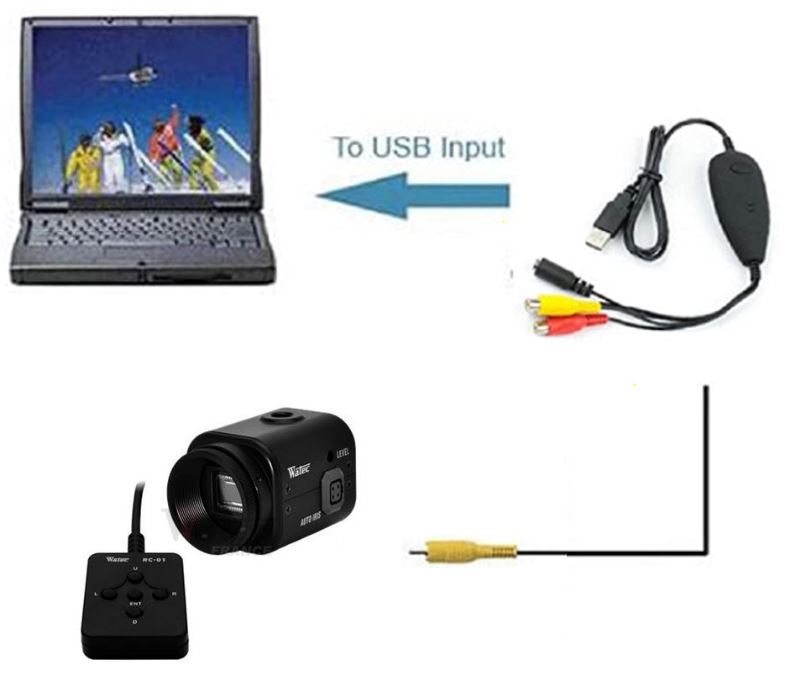

Watec 910HX/RC

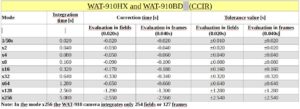

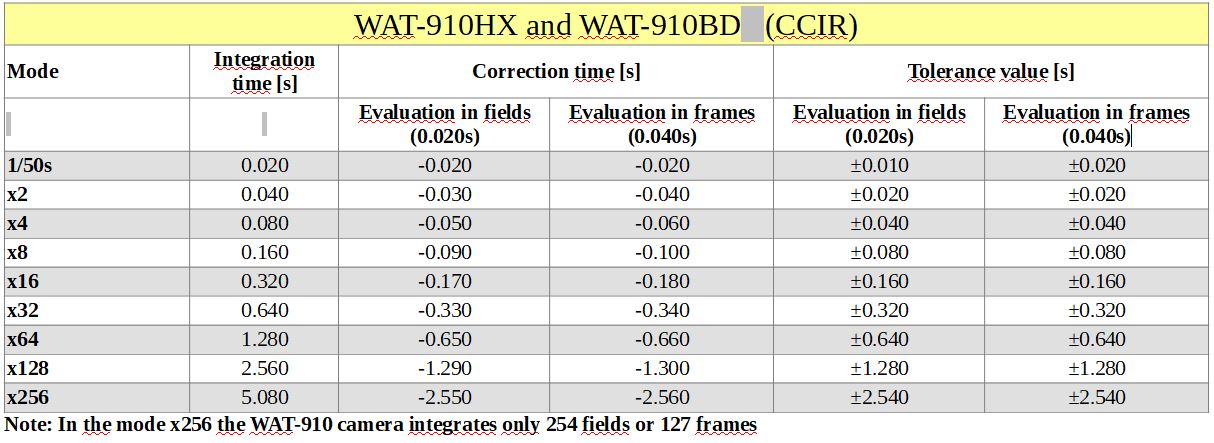

correction du temps d’intégration

expo-watec-120n

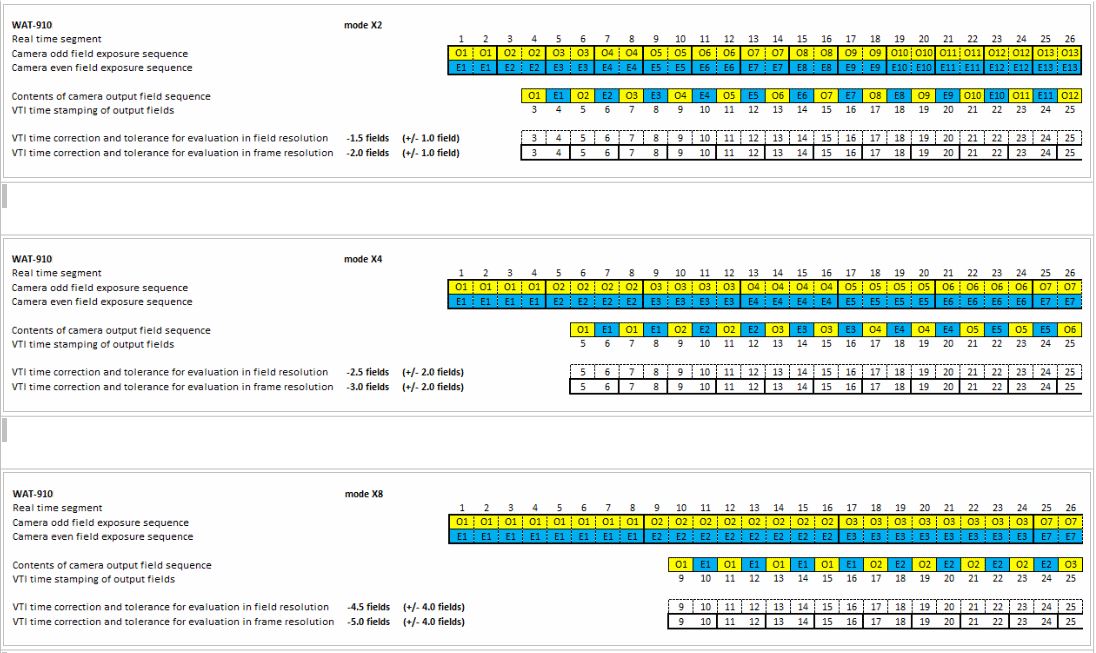

How to read the timing diagrams of the camera WAT-120N

For the determination of the time correction values we have to consider that most Video Time Inserter devices are time stamping the output field sequence with previous field times (see also diagram 2 and 3 of this page). This means that we have to imagine the output field sequence shifted by one field time to the left (previous field time) to get the VTI inserted times and the right correction values.

Timing diagram of video camera WAT-120N in mode OFF

Timing diagram of video camera WAT-120N in mode 1

Timing diagram of video camera WAT-120N in mode 2

Timing diagram of video camera WAT-120N in mode 4

Timing diagram of video camera WAT-120N in mode 8

Timing diagram of video camera WAT-120N in mode 16

Timing diagram of video camera WAT-120N in mode 32

Timing diagram of video camera WAT-120N in mode 64

Timing diagram of video camera WAT-120N in mode 128

Timing diagram of video camera WAT-120N in mode 256


sprite2_sm

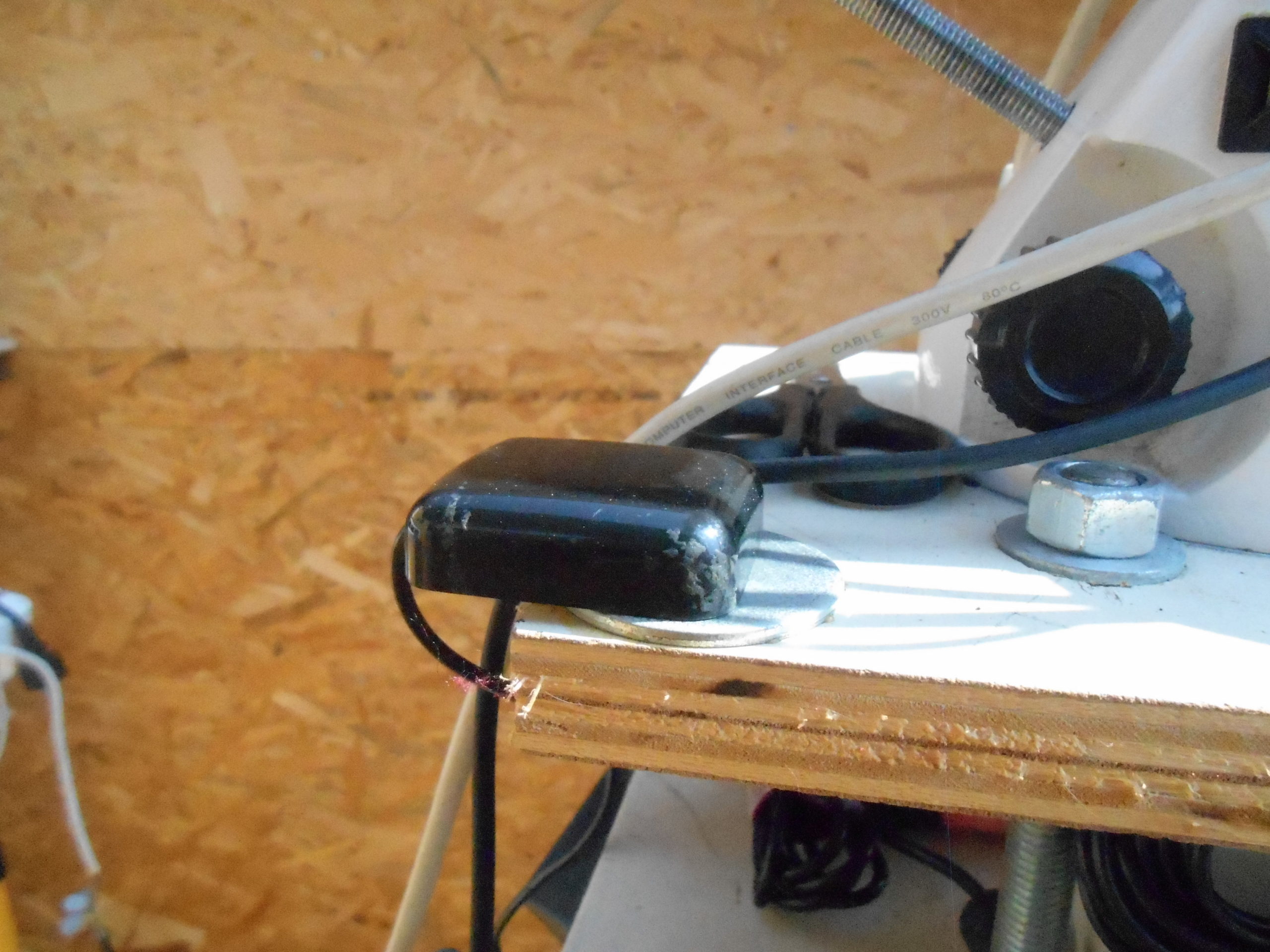

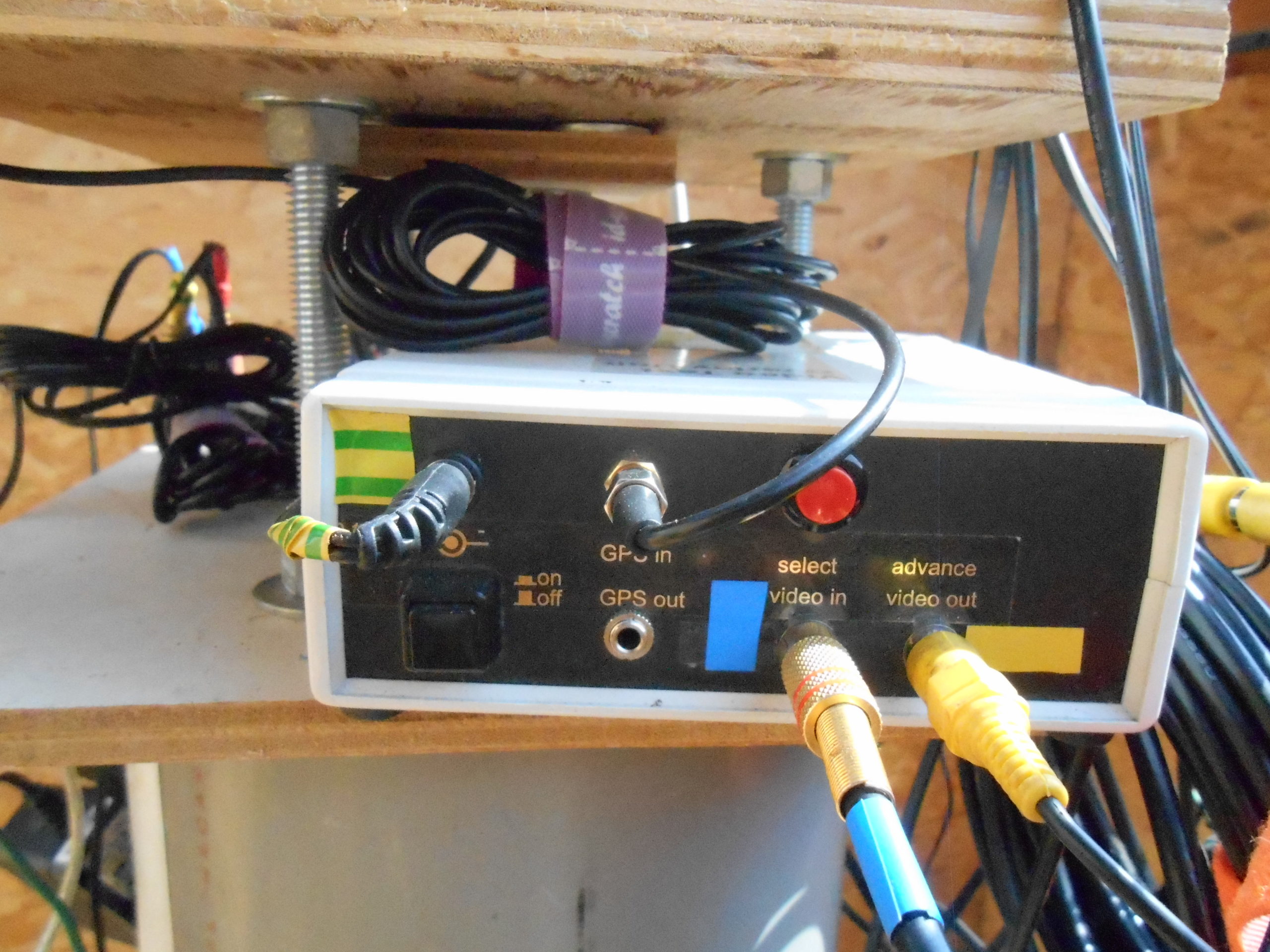

Timer GPS

blackboxcamera
